Configuring Junctions¶

This guide walks you through configuring Junctions in JunctionRelay

Prerequisites¶

You have at least 1 Data Collector with added sensors
You have at least 1 Device with a configured Screen to stream data to

Junction Type/Protocol¶

There are multiple protocols you can stream data with

COM
HTTP
MQTT*
Websocket

In addition, the following Gateway Junctions can be created, which will forward the payloads to downstream devices connected over ESP:NOW to the gateway device.

COM to ESP:NOW
HTTP to ESP:NOW
WebSocket to ESP:NOW

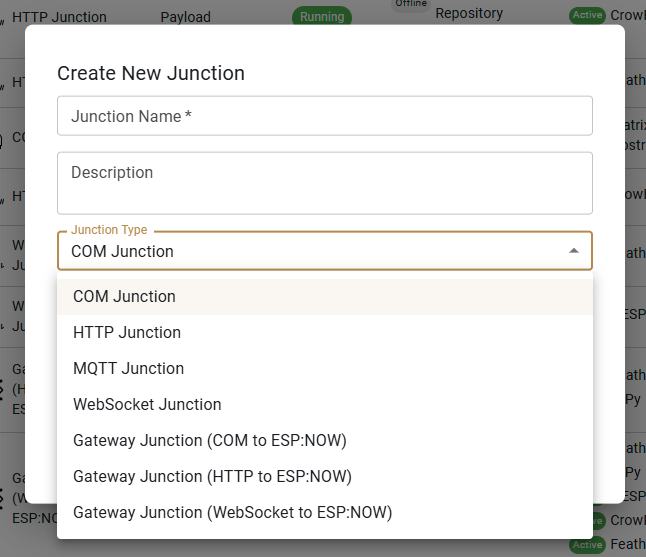

Protocols
